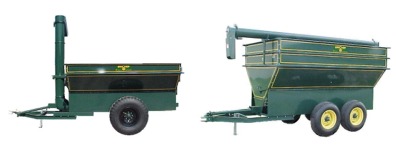

10' GRAINOVATOR

10’ Grainovator specs and options:

  • 10’ dual compartment boxes are available in 155 or 205 bushel capacities
  • Dual gate system is standard
  • Available with single HD axle or oscillating tandem axles
  • Tandem axles come standard with 15” X 8” rims equipped with 11L15 farm implement tires
    (Custom tires available upon request)
  • HD single axle comes standard with 20” rims equipped with high-flotation
    1100X20 NDT military take-off tires
  • Vertical auger options include 9’ and 11’ lengths (Custom lengths are available upon request)
  • Boom auger options include 12’ and 14’ lengths (Custom lengths up to 19’are available upon request)
  • Boom augers can be controlled manually with a hand crank and dual-action hand pump
    or hydraulically from the tractor
  • Scale units are available for all models
  • Optional water-shedding tarp is available








Download these grain-O-vator manuals in PDF format:

10-20 Series Operations Manual
10-20 Series Parts Manual
30 Series Parts Manual
